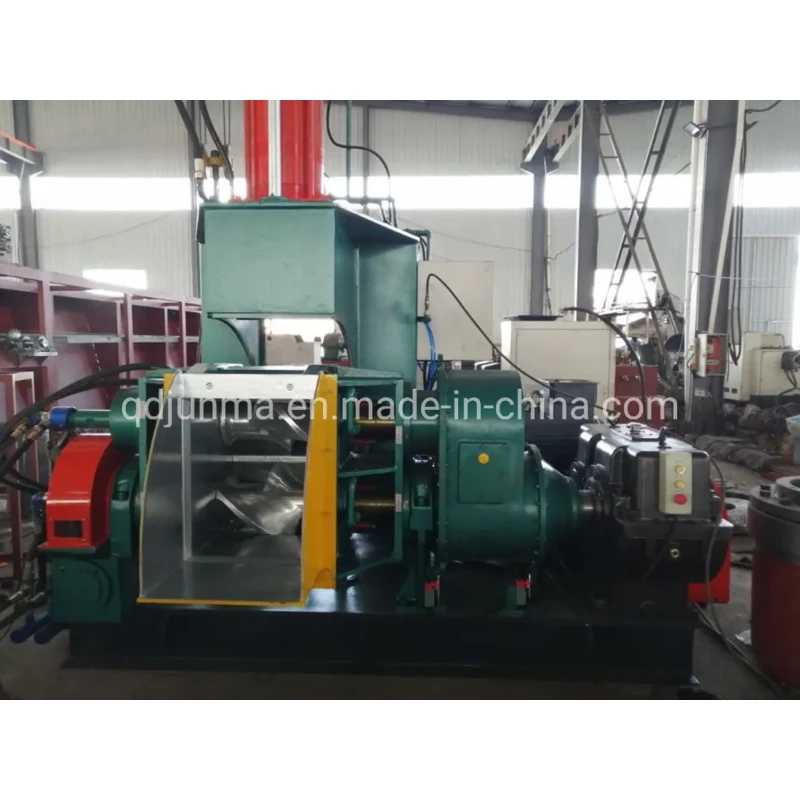

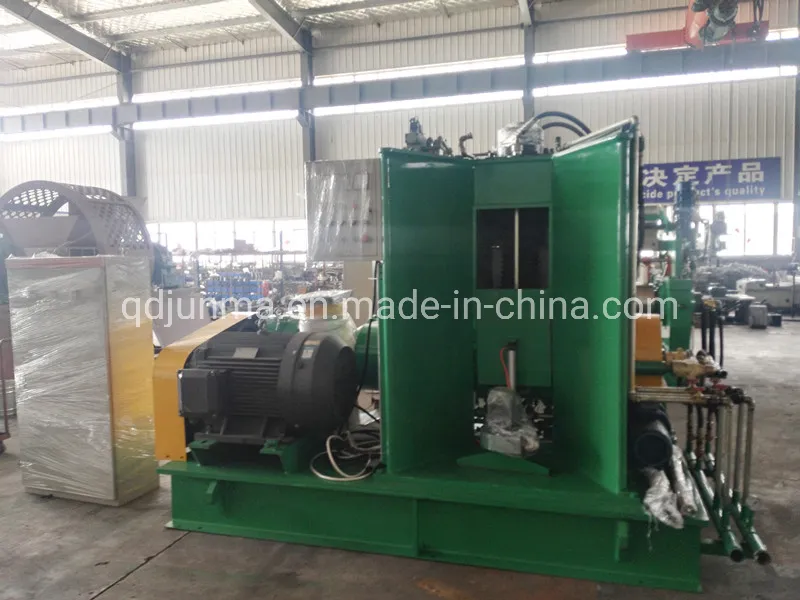

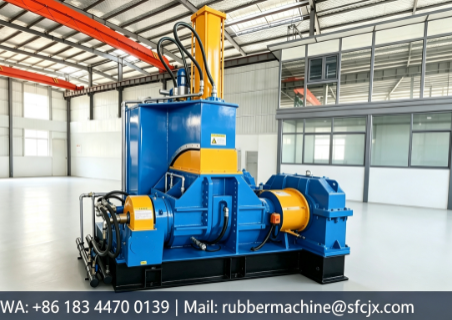

Automatic Electric 55L Internal Mixer Rubber Kneader for Efficient Rubber Compound Production
Application Range
This rubber kneader is designed for plasticizing and mixing natural rubber, synthetic rubber, reclaimed rubber, plastics, and foamed plastics. It efficiently handles materials of varying consistencies and compositions, making it suitable for a wide range of industrial processing needs.
Construction Features
• Complete Temperature Control System: Ensures materials are mixed and plasticized under precisely controlled pressure and temperature, resulting in high production efficiency and consistently superior output quality.
• Optimized Rotor Design: The carefully calculated spiral angle and overlapping blade geometry of the rotors ensure thorough, uniform dispersion of materials throughout the mixing cycle.
• Hard Chrome-Plated Contact Surfaces: All surfaces in contact with materials are hard chromium plated and precision polished, providing excellent corrosion resistance and long-term wear durability.
• Jacketed Cooling/Heating System: The jacket design on material-contact surfaces enables efficient water cooling or steam heating, meeting the precise thermal requirements of rubber and plastics processing.
Technical Parameters of rubber kneader:
| Model |
X(S)N-3x32 |
X(S)N-5x32 |
X(S)N-10x32 |
X(S)N-20x32 |
X(S)N-25x32 |
X(S)N-35x30 |
X(S)N-55x30 |
X(S)N-75x30 |
X(S)N-110x30 |
X(S)N-150x30 |
X(S)N-200x30 |
| Total Volume Of Mixing Chamber (L) |
8 |
15 |
25 |
45 |
55 |
75 |
125 |
170 |
250 |
325 |
440 |
| Working Volume Of Mixing Chamber (L) |
3 |
5 |
10 |
20 |
25 |
35 |
55 |
75 |
110 |
150 |
200 |
| Driving Motor Power (KW) |
5.5 |
11 |
22 |
37 |
37 |
55 |
75 |
110 |
185 |
220 |
280 |
| Tilting Motor Power (KW) |
0.55 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
4 |
5.5 |
11 |
11 |
| Tilting Angle (°) |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
135 |
135 |
| Rotating Speed of Rotor Front/Rear (r/min) |
32/24.5 |
32/23.5 |
32/25 |
32/27 |
32/24.5 |
30/24.5 |
32/24.5 |
32/24.5 |
32/24.5 |
30/24.5 |
30/24.5 |
| Pressure of Cooling Water (MPA) |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
| Overall Dimension LxWxH (mm) |
2000x1000x2220 |
1850x1200x2280 |
2450x1650x2350 |
2675x1650x2560 |
2675x1650x2560 |
3200x1900x2950 |
3230x1927x2958 |
3325x2615x3105 |
4075x2712x3580 |
4250x2750x4106 |
4250x3400x4215 |
| Gross Weight (T) |
~2 |
~2.1 |
~2.1 |
~4 |
~4.5 |
~6.3 |
~7.1 |
~9.5 |
~14.9 |
~19.5 |
~22.5 |
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine undergoes full assembly and rigorous testing before shipment to ensure optimal performance.
What's the machine quality guarantee?
We provide a one-year quality guarantee. Our machines incorporate world-renowned brand components to maintain perfect working condition and long-term reliability.
Are you able to provide installation and commissioning overseas? How long will it take?
Yes, we offer overseas installation services and technical support. Installation costs are covered by the customer. Small machines typically require 2-3 days, while larger production lines may take approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machines exactly as discussed and confirmed in your order. Our company culture is built on innovation, quality, integrity, and efficiency. We have established successful partnerships with world-renowned rubber production manufacturers and can provide references upon request.
How can we visit your facility?
We are located in Qingdao City, Shandong Province, China. The nearest airport is Qingdao Liuting International Airport. We provide airport pickup services for visiting clients.
Our Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress updates with regular photo documentation
- Complete documentation including packing lists, commercial invoices, and bills of lading
- Complimentary technical documentation: foundation drawings, installation guides, user manuals, maintenance instructions, and part diagrams
- Overseas engineering support and operator training programs
