Two Roll Rubber Calender Machine with Hollow Smooth Roll, 360mm Roll Diameter, and 37KW Main Motor Power

Brand Name : SFC

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : USD6,999.00-119,999.00/set

Payment Terms : T/T

Supply Ability : 50 Sets/month

Delivery Time : 50 days

Packaging Details : Standard export package

Model Number : XY-2I 320 XY-2I 620 XY-2I 1120A

Weight : customized

Type : Rubber Calender

Voltage : 380v/50hz

Product name : Two Roll Rubber Calender Machine

Roll type : smooth roll

Contact Now

Two Roll Rubber Calender Machine

Our two roll rubber calender machine is designed for precision rubber processing with reliable performance and durable construction.

Working Conditions

Machine Working Environment: Temperature 7~40ºC, maximum relative humidity 95%
Power: 380V 50HZ 3 phases
Compressed Air: 0.6~0.8MPa
Cooling Water Pressure: 0.4MPa

Main Technical Specifications

Rolls:
- Roll Diameter: Ø360mm
- Roll Working Length: 900mm
- Roll Structure: Hollow Smooth Roll
- Roll Surface Hardness: HS68-72
- Roll Surface Finish: Ra1.6
- Rolls Arrangement: I Type
Roll Speed Ratio: 1:1
Nip Adjustment Device:
- Nip Range: 0-10mm
- Electrical Motor Power: 1.5KW
Main Motor Power: 37KW

Model Specifications

Model	XY-2I-320	XY-2I-630	XY-2I-900	XY-2I-1500	XY-2I-1830	XY-2I-1730
Roller Diameter (mm)	160	230	360	450	550	610
Roller Working Length (mm)	320	630	900	1500	1830	1730
Linear Velocity	1:1	1:1	1:1	1:1	1:1.08	1:1
Friction Ratio (r/min)	7.79	14.8	3-20.2	2.5-24.8	2-18.7	4-36
Nip Adjust Range (mm)	0-4.5	0-5.5	0-10	0-10	0-12	0-15
Products Min Thickness (mm)	0.2	0.2	0.2	0.2	0.2	0.2
Products Width	250	580	920	1250	1600	1500
Main Motor Power (kW)	5.5	15	37	45	75	90

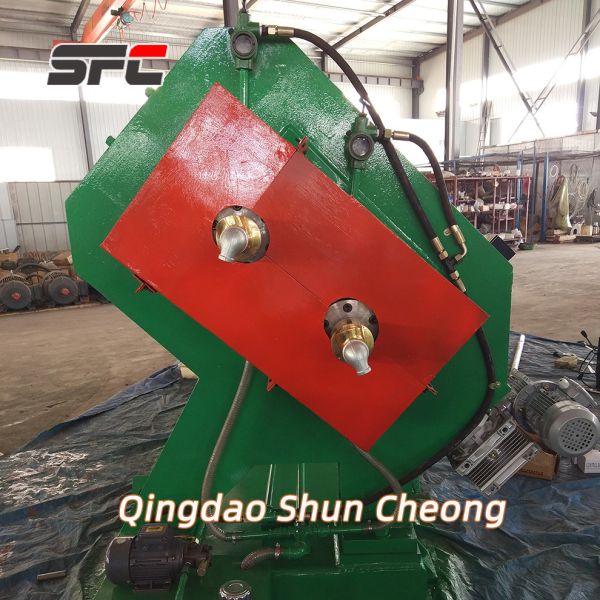

Product Photos

Two Roll Rubber Calender Machine with Hollow Smooth Roll, 360mm Roll Diameter, and 37KW Main Motor Power

Packaging

Equipment painting completed before delivery, and then wrapped with stretch film to avoid rubbing the paint off the surface. Wooden packaging can be customized. Key parts, such as electronic control box, will be wrapped by shockproof packaging materials and then packed in wooden cases.

Frequently Asked Questions

What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show the user around us.
How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

Our Services

Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
In the process of production, we will take photos and send to customers for their track the progress.
Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
We supply overseas engineer service and help to train your workers to operate the machine.
